Dear Valued Customers and Partners,
From August 8–10, 2025, the Hongwei World Electric Heating Industry Expo & World Electric Heating Industry Conference will be held at the China Import and Export Fair Complex (Canton Fair Complex), Guangzhou.
Our booth number is A01.
We will showcase our latest and most advanced products, including:Winding machines; Multiple spot-welding threading machines (for long lead rods, short heating wires, and standard applications); 36-position dust-free powder filling machines; New “Three-Guarantee” dust-free powder filling machines; Sheet threading machines;Belt-type tube-shrinking feeding machines; Tube-shrinking machines; Tube-length equalizing machines (post-shrinking); Multi-function machines; CNC tube-bending machines.
We sincerely invite domestic and international customers and partners to visit our booth for communication, procurement, and cooperation. More product promotions and business cooperation opportunities await you on-site!

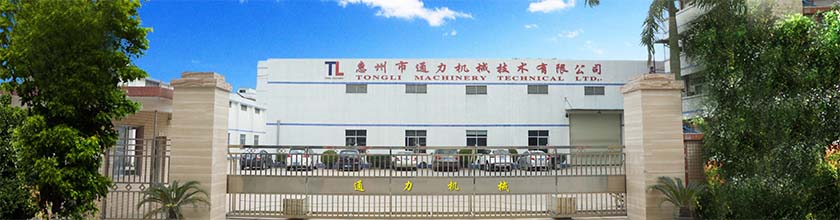

Company Profile: HUIZHOU TONGLI MACHINERY TECHNICAL CO., LTD.
Founded in 1999, HUIZHOU TONGLI MACHINERY TECHNICAL CO., LTD. is located in Huiyang District, Huizhou City, Guangdong Province, with a land area of 12,000㎡ and a plant area of over 6,000㎡. We are a leading high-tech enterprise specializing in the manufacturing of electric heating equipment and intelligent assembly solutions in China.
Since 2002, our products have been exported worldwide, now covering more than 60 countries and regions, including the United States, India, Turkey, Brazil, Japan, South Korea, and Iran, earning broad recognition from global customers.
We possess strong R&D capabilities and a highly specialized technical team, consisting of experienced professionals in electric heating tube manufacturing and mechanical automation. This allows us to integrate R&D, manufacturing, intelligent assembly, sales, and service into a complete industrial chain.
From our early days focusing on single-machine automation to achieving fully automated intelligent production lines, TONGLI MACHINERY has always adhered to the principle of “customer delight as our mission and market demand as our guide.” We continue to learn from and adopt advanced international technologies, constantly improving our R&D and manufacturing standards to strengthen our core competitiveness.
TONGLI MACHINERY looks forward to working hand in hand with global partners to achieve win-win success and create a brighter future for the electric heating industry!
Product Introduction

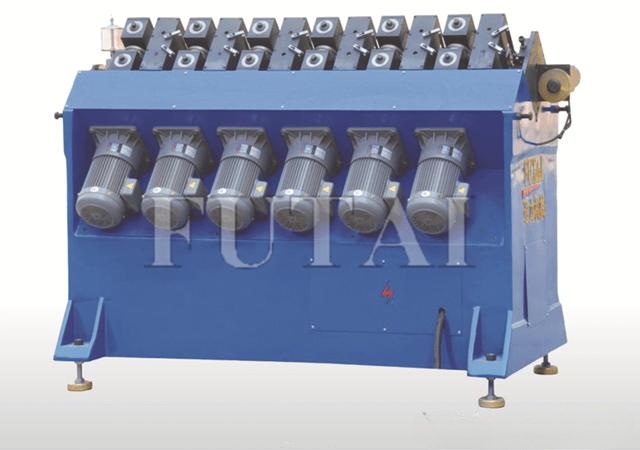

【TL-101-12 Rolling machine】
Application: TL-101 Rolling machine is specially designed to reduce round and metal sheathed tubular heating elements to increase the MgO powder density.
Functions: The frame of the machine is made out of pig iron casting.
We have two types of motor for your choice, non-uniform speed (different speed) and uniform speed. The former makes the ductility of the tube better, while the latter applies to the tube with large diameter.
When the tube specifications change, we only need to replace a set of rollers. The rollers can be classified into two categories: DC 53 roller and tungsten carbide roller. DC 53 roller can reduce approximately 3 hundred thousand meters length heaters( 8H/ Day and 5Days/ Week), while tungsten carbide roller can reduce approximately 1 million meters length heaters( 8H/ Day and 5Days/ Week)
This machine is of small size, low noise and convenient adjustments.
Applicable tube: Copper, iron, aluminum, stainless steel, etc.
【TL-105A Filling machine( Powder free)】
Application: TL-105A Filling machine is mainly used for magnesium powder filling between heating element tube and coil set.
Functions: TL-105A Filling machine can fill 36 heating element tubes at a time. And 24 tubes can be loaded and unloaded by pneumatic clamp at one time.
Its structure applies a three guide tubes mode, to guarantee the coil sets are in the center of the element tubes.
Adopting outer guide tube powder sealing technology, the whole filling process is powder-free.
The depth of magnesium powder can be controlled.

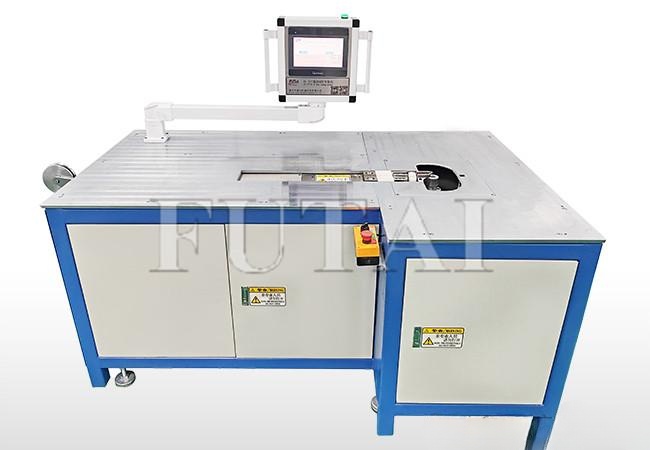

【TL-377 Bending machine】
Application: TL-377 Bending machine is mainly used for bending heating elements to different shapes.
Functions: It applies servo motor to bending and feeding. The speed, length and angle can be adjusted precisely.
It can bend 1-4 pcs heating elements at a time.
Different R section diameter intelligent switching.
Could set bending technical parameters in touch screen.
With 3 different bending heads

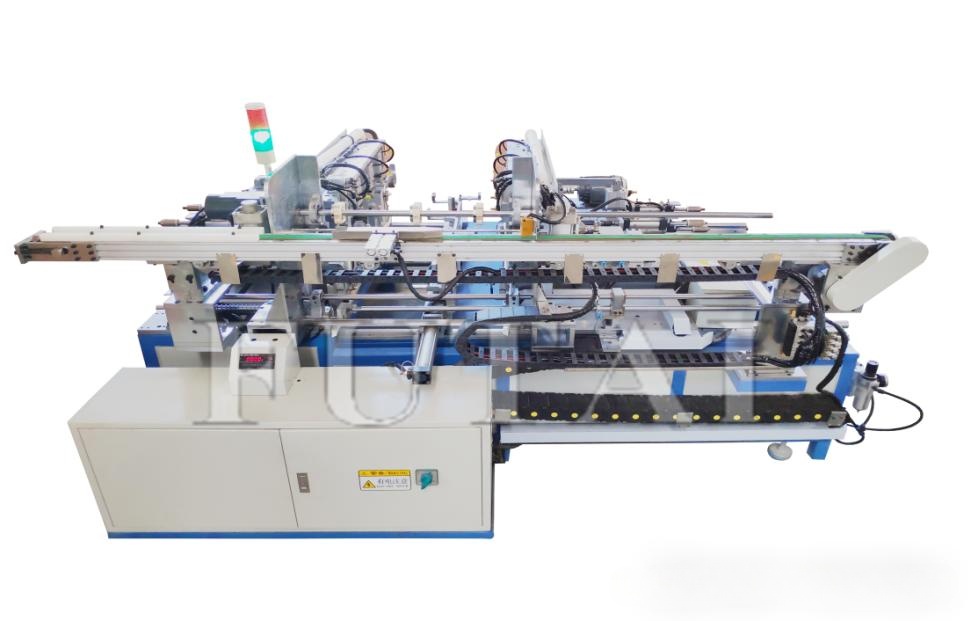

【TL-378 Multi-function Machine】
Application:
TL-378 Multi-function machine is mainly used for automatic production of tube turning, plug removing, pin cutting, digging powder.
Functions:
Automatic turning, plug removing, pin cutting, digging powder. It can be connected with the pipe rolling machine and the pipe feeding machine to form an assembly line and can be operated by only one person, thus saving labor. In addition, Resistance Test, tube length range test, pin chamfering, straight tube marking can be added. It also can be custom-made according to different customers’ requirements.

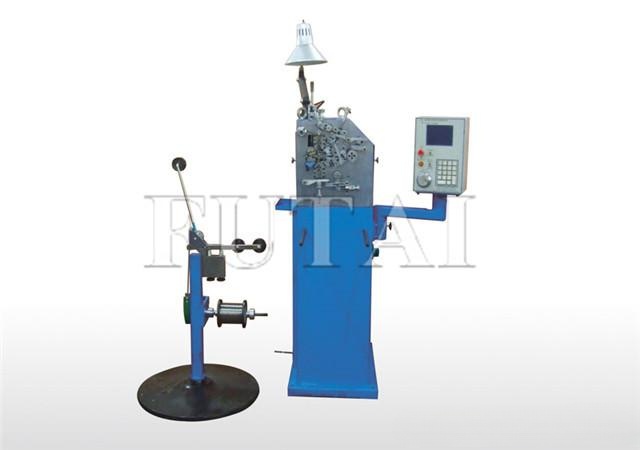

【TL-421 NC Coiling machine】
Application:
TL-421 NC Coiling machine is mainly used for winding resistance wires, which is big in middle and small in 2 ends, inside of heating elements.
Functions:
Can coiling the wire diameter range between Φ0.1 6~Φ0.55.
The heating wires winded by this machine have an accurate resistence value and no burs.
The max. feeding speed could be 34m/min, which with highly efficiency.
If this machine is use together with TL-450 Automatic coil, pin plug assembling and welding machine, then the effect will be particularly good.

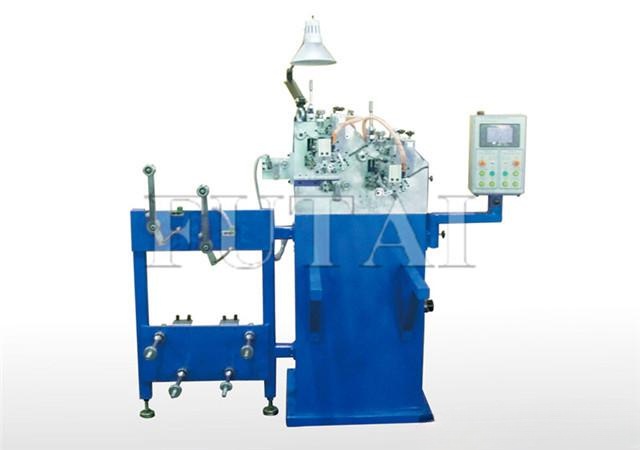

【TL-422 NC Coiling machine】
Application:
TL-422 NC Coiling machine is mainly used for winding resistance wires inside of heating elements.
Functions:
Can produce two different kinds of specifications of resistance wires at the same time.
Can achieve coiling the single wire and double wires for the diameter range between Φ0.16 ~Φ0.55.
The heating wires winded by this machine have an accurate resistance value and no burs.
The productivity compared with the traditional coiling machine was increased 2.5 to 3 times, which brings a remarkable result in reducing the heating elements factory’s cost and increasing their productivity.
If this machine is use together with TL-450 Automatic coil, pin plug assembling and welding machine, then the effect will be particularly good.

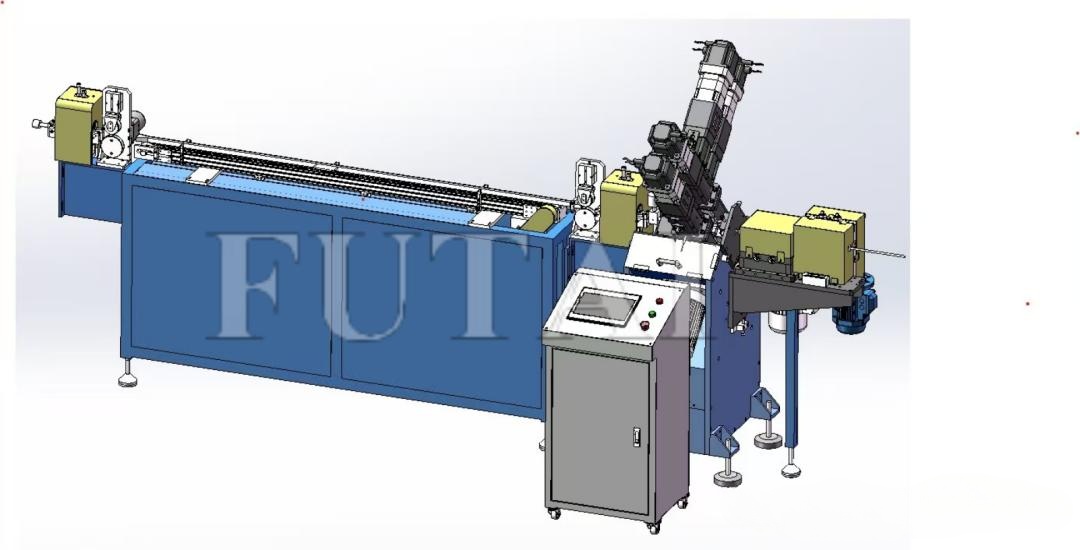

【TL-159B Tube Length Compensation Machine( after rolling)】
Application:
The TL-159B Tube Length Compensation Machine is installed at the outlet of the tube rolling machine. Its function is to compensate for length differences in tubes after rolling by performing precise calculations, ensuring that the lengths of the tubes are consistent.
Main Performance:
- Automatic Operation: The machine automatically receives tubes from the tube rolling machine, sequentially performing tube length measurement, automatic calculation of compensation data, rolling compensation, and XY mechanism straightening. It features product counting function, real-time display of measurement data, and supports cycle time settings, with real-time monitoring of the completion status of each process.
- Manual Operation: Independent control of components such as the front pressure roller, middle pressure roller, and rear pressure roller via corresponding buttons.
- Status Monitoring and Feedback: “Parameter Settings,” “PLC Current Values,” and “Data Display” functions allow the operator to view real-time information on current tube length, axis positions and speeds, process completion status, measurement data, and compensation data.
Machine Features:
- Intelligent and precise data collection: Automatically collects the length of the heating elements, stores the data, and automatically calculates the difference between the measured length and the target length (final required length), simultaneously performing automatic calculations for compensation dimensions to provide data support for precise processing.
- High-precision control: Equipped with an advanced servo control system, combined with a precision electric cylinder transmission mechanism, and an accurate length calculation structural system.
- User-friendly operation: Features a human-machine interface design for easy operation.
- Stable, reliable, and durable: The machine body is constructed from high-quality thickened steel plates.
Main Technical Parameters:
- Tube diameter range: Ø6.5–Ø8.0
- Minimum tube length: 110 mm
- Efficiency: 18m/min Tube length error range: ±0.5mm
- Straightness: —1:300
- Roundness: 〇 0.07

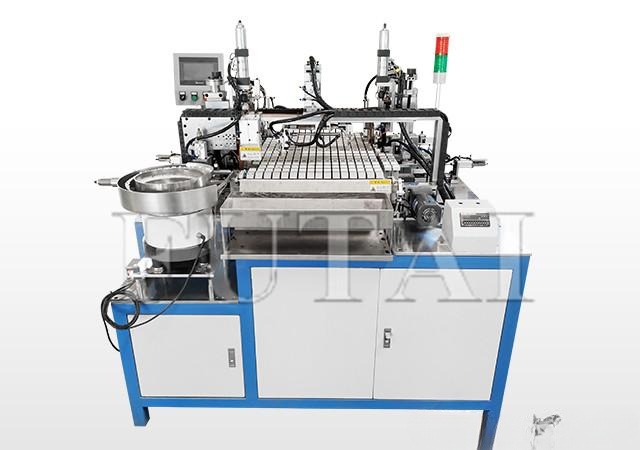

【TL-450 Automatic Coil,Pin and Plug Assembling and Welding Machine】
Application:
The TL-450 Automatic Coil, Pin and Plug Assembling and Welding Machine is mainly used for the automatic assembling of pins, coils, and plugs, resistance testing, as well as spot welding for conventional heating elements. It completes one product in 4 seconds, with the spot welding electrodes capable of over 20,000 spot welds without grinding.
Main Performance:
- Automatic Operation: Automatically performs right and left coil insertion, resistance measurement, left and right spot welding, plug assembling, and material separation. Product counting function, real-time display of production quantity, and cycle time setting. Real-time monitoring of the completion status of each process.
- Manual Operation: Left and right manual operation, manual spot welding operation, and manual plug assembling operation interface.
- Status Monitoring and Feedback: Real-time monitoring of the completion status of each process, such as left and right coil with pin assembling, spot welding, and resistance measurement, with an intuitive interface display for easy monitoring of equipment operation.
Machine Features:
- High-precision control: Servo control system and mechanical transmission mechanism ensure precision.
- Efficient production: Automated operation and multi-process coordination enhance efficiency and reduce costs.
- User-friendly operation: Human-machine interface makes operation more convenient.
- Stable and reliable: Cam-driven material flipping mechanism ensures stable, quick, and noise-free operation.
Main Technical Parameters:
- Voltage: 380V Power: 25kW
- Air Pressure: 5 kgf/cm²
- Applicable Coil Length Range: 60 mm–450 mm
- Applicable Pin Length Range: 40 mm–150 mm
- Production Efficiency: Average 4 seconds per piece
- Spot Welding Electrode Rod Service Life: Can withstand over 20,000 spot welds without grinding
- Control System: XINJE brand

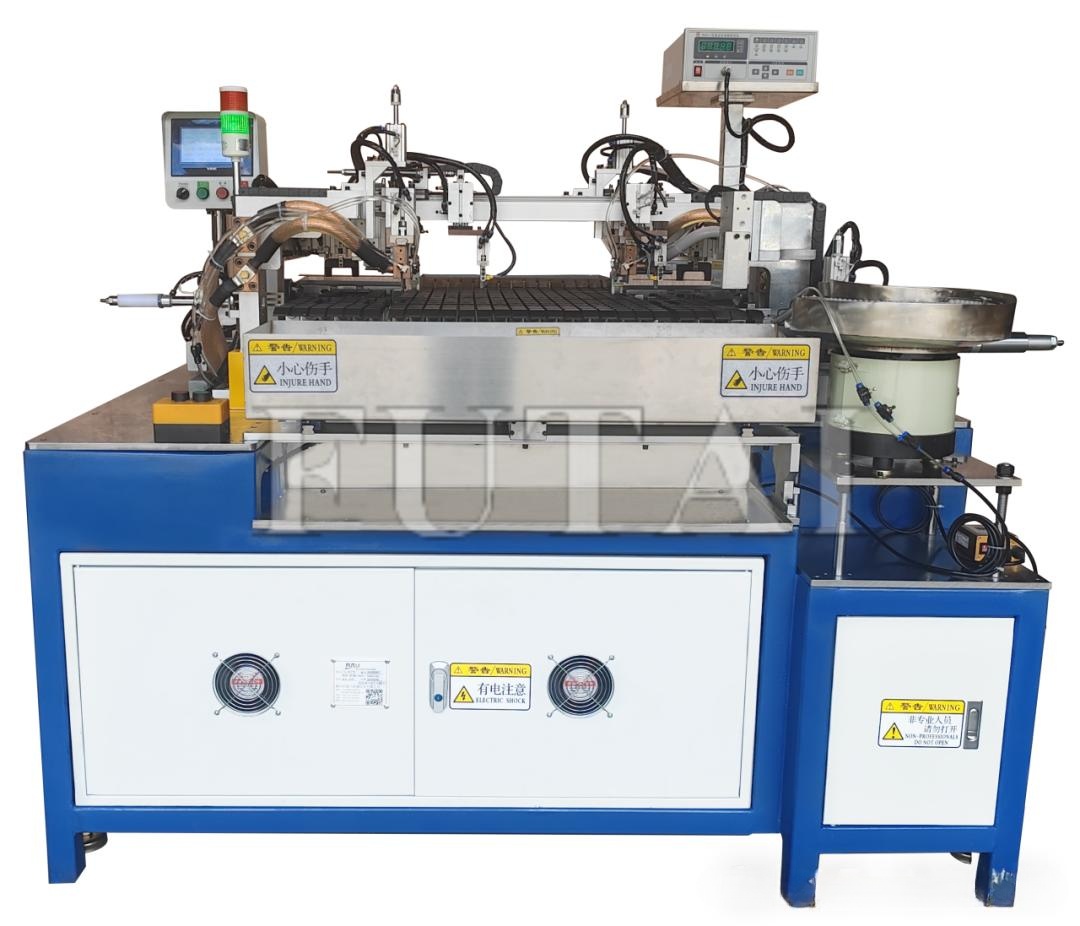

【TL-450B Automatic Coil,Pin and Plug Assembling and Welding Machine】
Application:
The TL-450B Automatic Coil, Pin and Plug Assembling and Welding Machine is a newly developed product specifically designed for long terminal pins. It mainly used for the automatic assembling of pins, coils, and plugs, resistance testing, as well as spot welding. It completes one product in 4 seconds and can perform over 20,000 spot welds on the electrode rod without grinding.
Main Performance:
- Automatic Operation: Automatically performs right and left coil insertion, resistance measurement, left and right spot welding, plug assembling, and material separation. Product counting function, real-time display of production quantity, and cycle time setting. Real-time monitoring of the completion status of each process.
- Manual Operation: Left and right manual operation, manual spot welding operation, and manual plug assembling operation interface.
- Status Monitoring and Feedback: Real-time monitoring of the completion status of each process, such as left and right coil with pin assembling, spot welding, and resistance measurement, with an intuitive interface display for easy monitoring of equipment operation.
Machine Features:
- High-precision control: Servo control system and mechanical transmission mechanism ensure precision.
- Efficient production: Automated operation and multi-process coordination enhance efficiency and reduce costs.
- User-friendly operation: Human-machine interface makes operation more convenient.
- Stable and reliable: Cam-driven material flipping mechanism ensures stable, quick, and noise-free operation.
Main Technical Parameters:
- Voltage: 380V Power: 25KW
- Air Pressure: 5 kgf/cm²
- Applicable Heating Wire Length Range: 60mm–450mm
- Applicable rod length range: 150mm-280mm
- Production efficiency: Average 4 seconds per rod
- Spot welding electrode rod service life: Can withstand over 20,000 spot welds without grinding
- Control system: XINJE brand

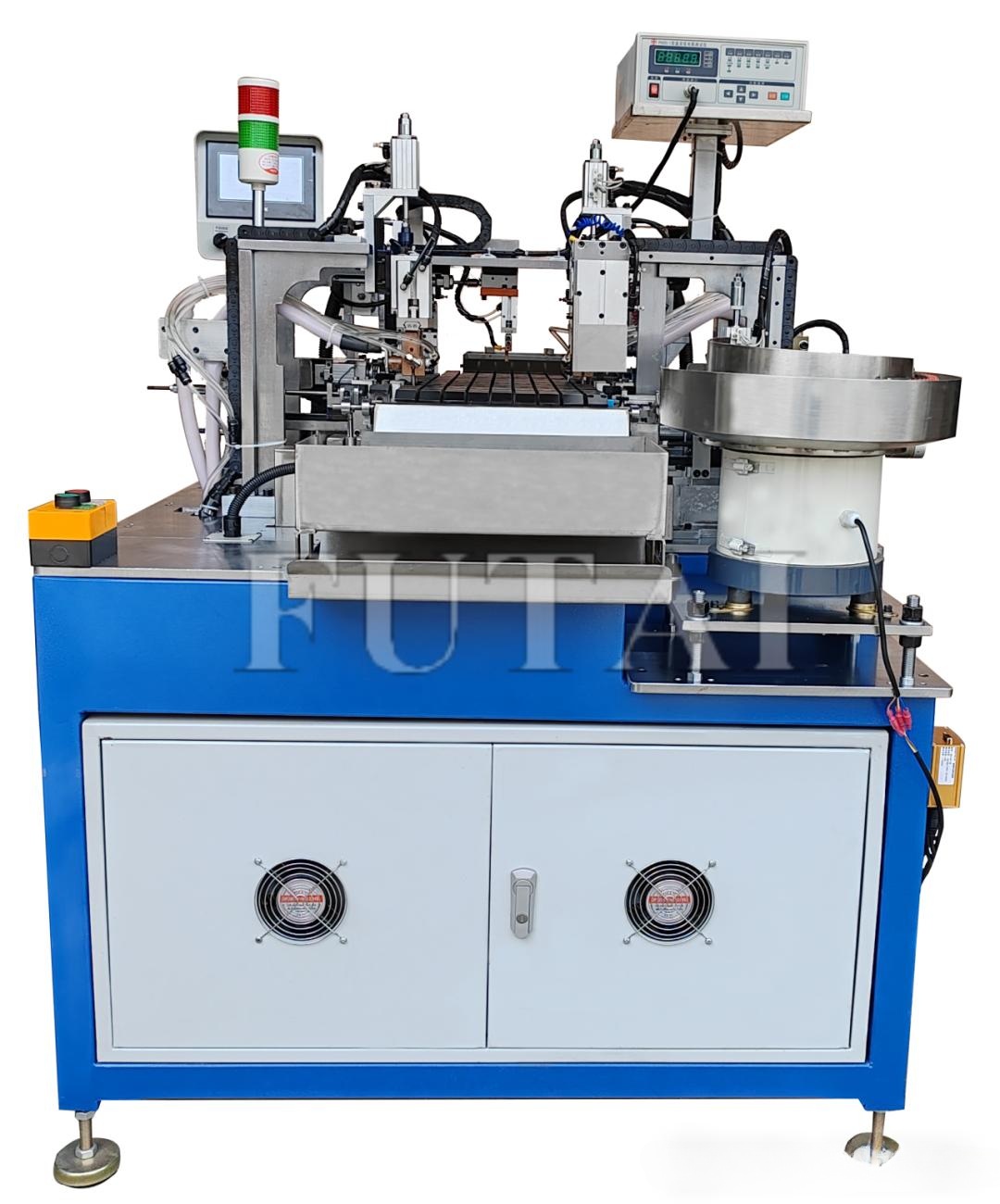

【TL-450C Automatic Coil,Pin and Plug Assembling and Welding Machine】
Application:
The TL-450C Automatic Coil, Pin and Plug Assembling and Welding Machine a newly developed product specifically designed for short coils. It mainly used for the automatic assembling of pins, coils, and plugs, resistance testing, as well as spot welding. It completes one product in 4 seconds and can perform over 20,000 spot welds on the electrode rod without grinding.
Main Performance:
- Automatic Operation: Automatically performs right and left coil insertion, resistance measurement, left and right spot welding, plug assembling, and material separation. Product counting function, real-time display of production quantity, and cycle time setting. Real-time monitoring of the completion status of each process.
- Manual Operation: Left and right manual operation, manual spot welding operation, and manual plug assembling operation interface.
- Status Monitoring and Feedback: Real-time monitoring of the completion status of each process, such as left and right coil with pin assembling, spot welding, and resistance measurement, with an intuitive interface display for easy monitoring of equipment operation.
Machine Features:
- High-precision control: Servo control system and mechanical transmission mechanism ensure precision.
- Efficient production: Automated operation and multi-process coordination enhance efficiency and reduce costs.
- User-friendly operation: Human-machine interface makes operation more convenient.
- Stable and reliable: Cam-driven material flipping mechanism ensures stable, quick, and noise-free operation.
Main Technical Parameters:
- Voltage: 380V Power: 25kW
- Air Pressure: 5 kgf/cm²
- Applicable Coil Length Range: 60 mm–200 mm
- Applicable Pin Length Range: 40 mm–80 mm
- Production Efficiency: Average 4 seconds per piece
- Spot Welding Electrode Rod Service Life: Can withstand over 20,000 spot welds without grinding
- Control System: XINJE brand

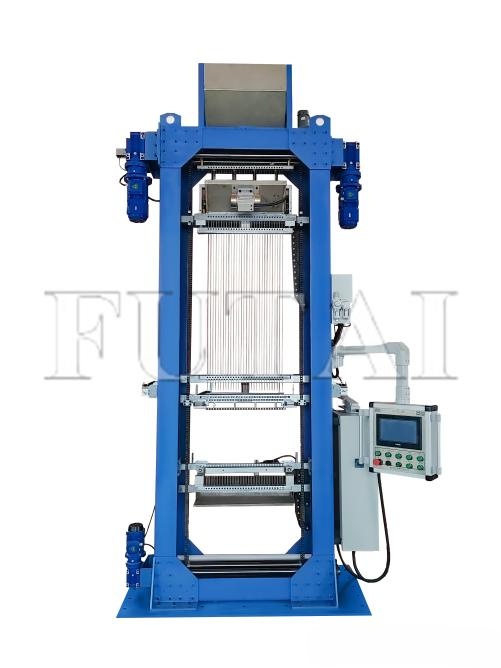

【TL-106A Filling machine( dust-free type)】
Application:
TL-106A Filling machine is mainly used for magnesium powder filling between heating element tube and coil set.
Functions:
TL-106A Filling machine can fill 30 heating element tubes at a time. And 30 tubes can be loaded and unloaded by pneumatic clamp at one time.
Its structure applies a three guide tubes mode to guarantee the coil sets in the center of the element tubes and outer guide tube control powder top level.
Adopting outer guide tube powder sealing technology, the whole filling process is powder-free.
It also saves a lot of production cost for the manufacturer.

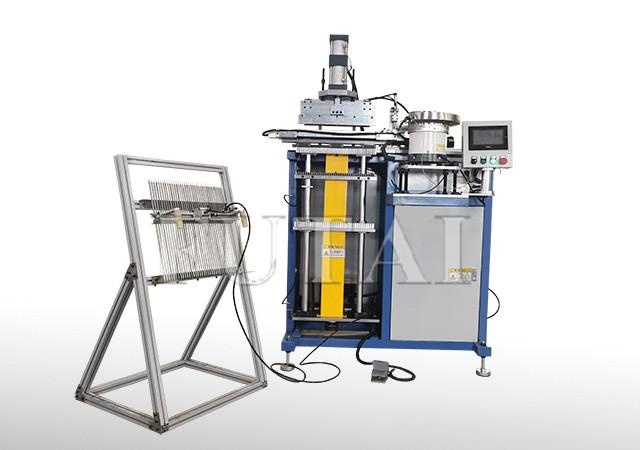

【TL-303 Automatic upper plug and pin assembling machine 】
Application:
TL-303 Automatic upper plug and pin assembling machine is mainly used for assembling the upper plug after filling MgO powder.
Functions:
TL-303 Automatic upper plug and pin assembling machine can assemble 24 or 36 upper plugs on the heating element tubes at a time. And 24 or 36 tubes can be loaded and unloaded by pneumatic clamp at one time which is easy and fast.
The plugs assembling movement adopts PLC control, servo motor and pneumatic drive which can promote the accurate implementation of each action.
Machine parts are chrome-plated to improve the surface hardness of the parts to increase wear resistance, and with beautiful appearance.

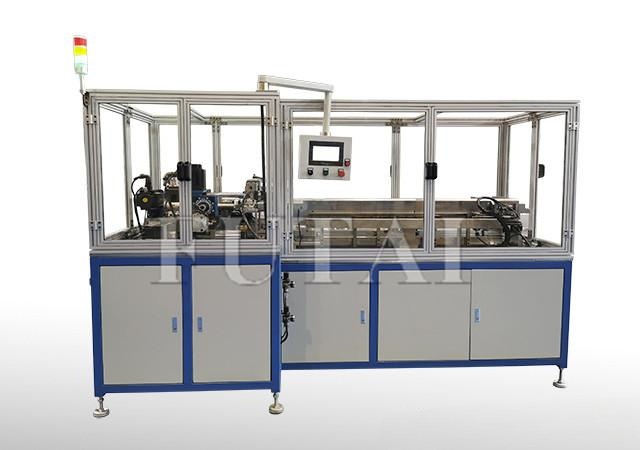

【TL-500 Fully-automatic spiral shape bending machine 】
1.Application:
TL-500 Fully-automatic spiral shape bending machine is mainly used for fully-automatic bending spiral shape heating elements including tube ends bending.
2.Functions:
Bending action adopts PLC control, touch screen man-machine interface operation, full servo motor drive action.
The 10.1-inch touch screen has a wide visual and operating interface. Changing the shape and size of the product can be done by simply adjusting the parameters in the touch screen.
Machine protection is composed of national standard aluminium profile and acrylic which is safe and beautiful.
Contact Information
HUIZHOU TONGLI MACHINERY TECHNICAL CO., LTD.
Contact Person: Mr. Li (+86 13802578513)
Tel: +86 752-3336389 / 3336303
Website: www.sztongli.com
Email: lzw@sztongli.com
Address: No. 2 Tongli Road, Chanjing Village, Xinxu Town, Huiyang District, Huizhou City, Guangdong Province, China
W E H E
World Electric Heating Industry Expo
Let’s Meet and Talk in Guangzhou, August 8–10
Exhibition Date: August 8–10, 2025
Exhibition Venue: China Import and Export Fair Complex (Canton Fair Complex), Guangzhou, China
2025 Exhibition Highlights:
Over 20,000㎡ exhibition area
500 exhibitors
1,000+ cutting-edge products
30,000+ domestic and international visitors, including buyers, distributors, engineers, and industry experts
Concurrent Events:
World Electric Heating Industry Conference, Award Ceremony, Business Matchmaking Sessions, Knowledge Corridor, and more.
Exhibit Categories:
Electric heating elements, materials, accessories, equipment, technology applications, and electric heating finished products for residential, commercial, and industrial use.
Concurrent Exhibitions:
Solar PV, energy storage batteries, heating & HVAC, biomass energy, air conditioning & cold chain, power supply & charging piles, clean energy, and storage-related exhibitions, with more than 33 halls open simultaneously.
Online Empowerment:
In addition to the offline exhibition, the event will leverage the Hongwei Metaverse Exhibition Ecosystem – Cloud Exhibition Power, enabling exhibitors to connect with domestic and international buyers, capture global trade opportunities, and link resources across the supply and industrial chains.
